Description

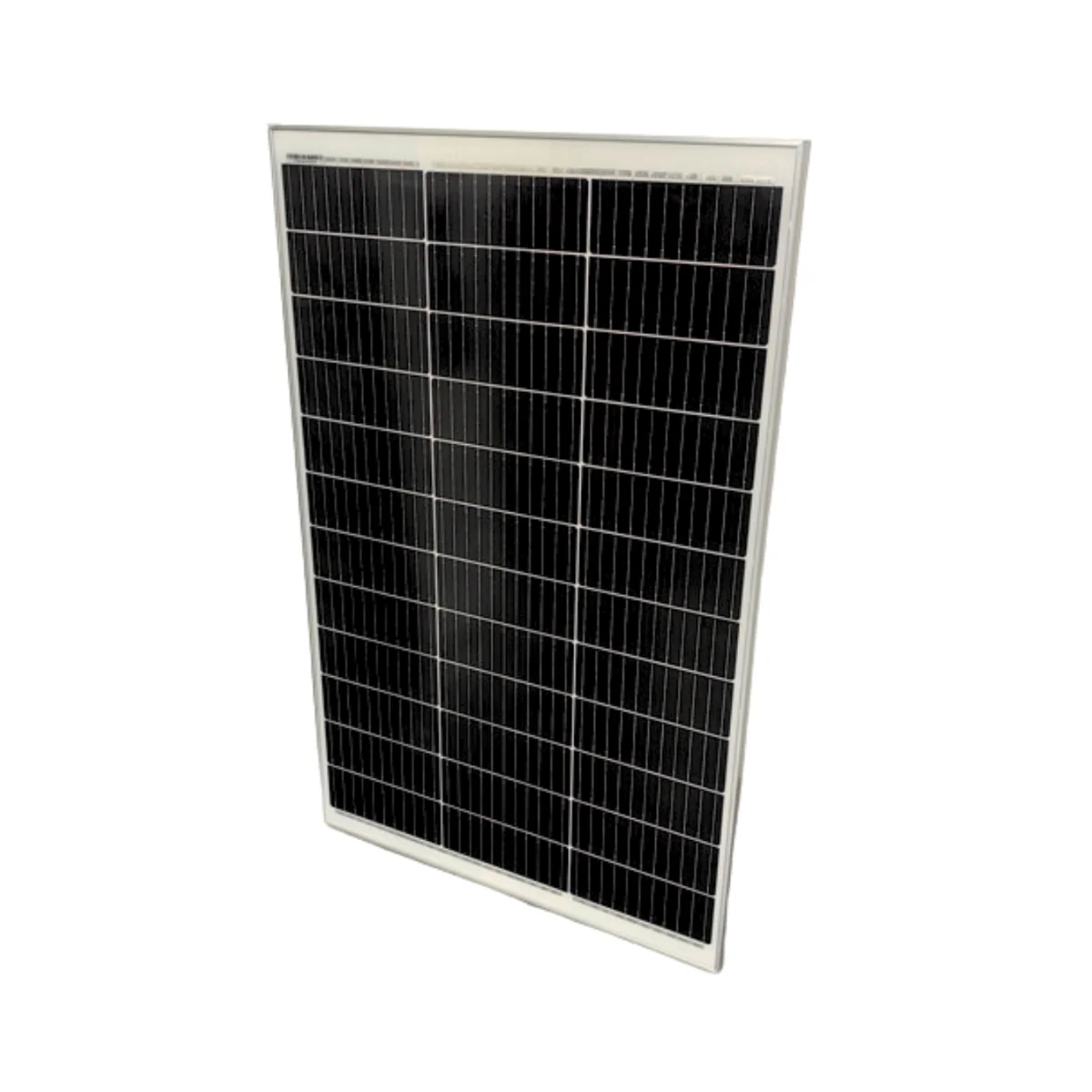

Enersol 100W Mono solar panel
Features
- Off-Grid.
- Anti-reflective – shock resistant tempered glass.
- Suitable for AC and DC applications.
- Reliable and flexible product range.
- 5 Year Warranty.
Mechanical characteristics
- Cell Orientation: 36 (12×3).
- Junction Box: IP65, 1 bypass-diodes.
- Output Cable: 500mm.
- Glass: 3.2mm solar glass.
- Frame: Anodized aluminium.
- Weight: 5.5kg.
- Dimensions (mm): 900 x 580 x 30.
Electrical characteristics
- Module Type: 100WP.
- Testing Condition: STC.
- Maximum Power: 100.
- Open circuit voltage (V): 24.50.
- Short circuit current (A): 5.16.
- Voltage at Maximum Power (V): 20.30.
- Current at Maximum Power (A): 4.93.
- Module Efficiency: 18.48%.
Operating characteristics
- Operational Temp: minus 40°C to 85°C.
- Power Output Tolerance: 0±5Wp.
- Maximum System Voltage: 1000V DC.
- Maximum Series Fuse Rating: 10A.
- Nominal Operating Cell Temperature: 48°C ±2°C.
Temperature Ratings STC
- Temperature Coefficient of is (+)0.04%/K.
- Temperature Coefficient of Voc: (-)0.30%/K.
- Temperature Coefficient of Pmax: (-)0.40%/K.
